Coarse screening & pre-screening

Mobile screening plants

Screening systems for the mobile processing and recycling of all types of screened materials. Optimal screening performance anywhere—with screening technology from SPALECK.

Mobile Deployment

Maximum flexibility

For nearly all materials

Clean screening results

For the toughest applications

Even for difficult-to-process materials

The Best Screening Quality Right Where It's Needed

High-performance screening systems for your applications

As a quality manufacturer of screening machines and a specialist in screening technologies, we offer you very powerful and reliable screening systems.

The special feature of SPALECK’s mobile screening technology is the outstanding screening quality for almost any input material. Whether the material being screened is dry, damp, or wet—your screening plant delivers optimal screening results and very clean fractions. We would be happy to advise you personally on your new screening systems.

Request your personalized quote today—and take advantage of our expert consulting services for mobile screening systems.

FORWARD THINKING. SINCE 1869.

Your experts in mobile screening systems!

Our team will be happy to advise you on the use of mobile screening technology. Just get in touch with us!

Let’s connect

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information

Unblock content Accept required service and unblock content

The best screen box for screening systems

Powerful and reliable

Whether it’s our 3D combination screening systems or our electrically powered mobile screening systems: Your new SPALECK screening box will integrate seamlessly into your screening system. Get the most out of recycling and processing your materials.

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information

Unblock content Accept required service and unblock content

Screening systems offer maximum flexibility

Areas of application for mobile screening plants

Our screening systems are used in a wide range of applications—from processing construction debris, scrap metal, and slag to organic materials and specialty applications—with SPALECK screening systems, the possibilities are endless. You are also welcome to test our screening systems at your facility.

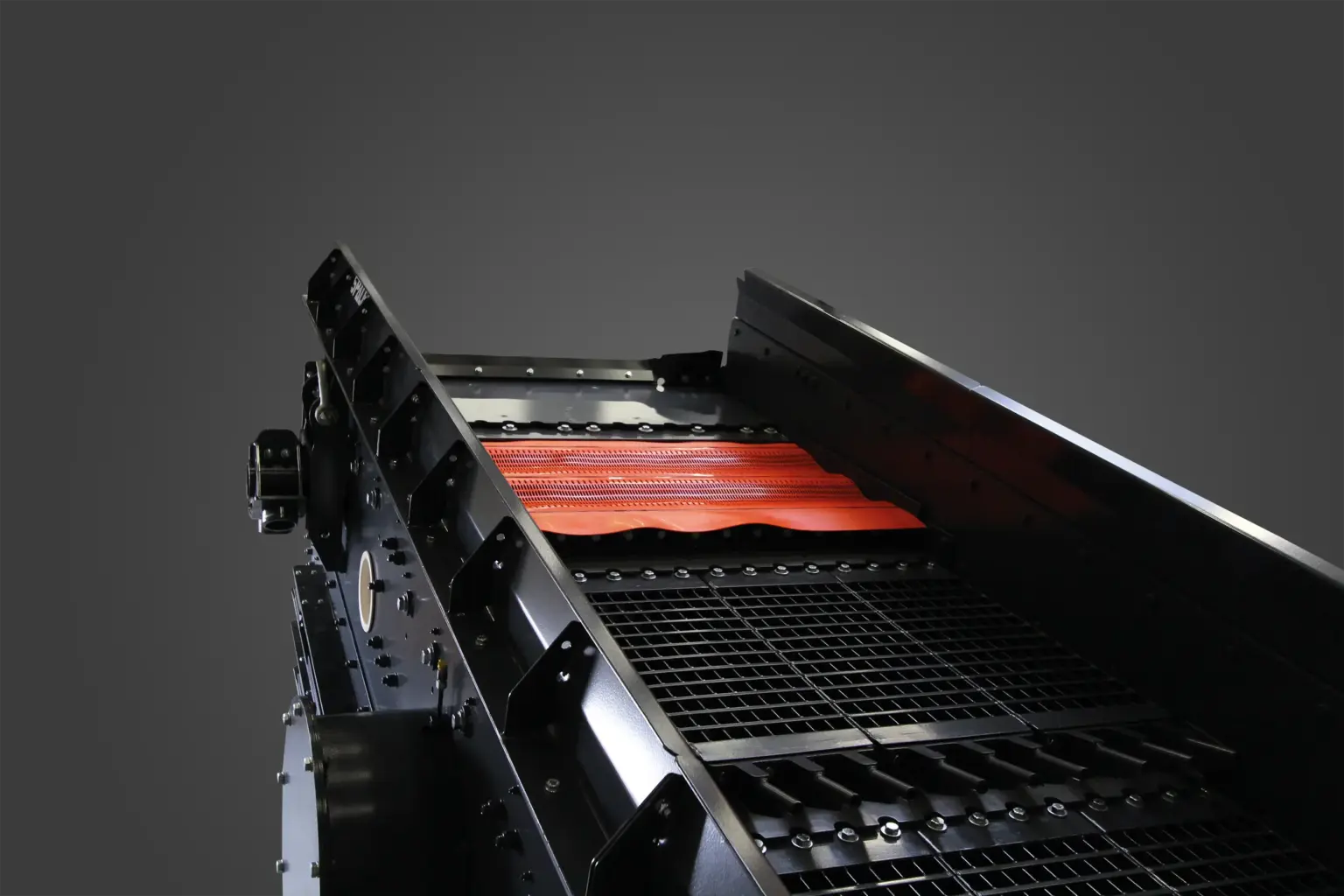

Optional: Tensioning shaft cassette in the upper deck

Simply even less cleaning effort

Are your screenings particularly sticky and sticky? Fine! With our patented, easy-to-retrofit tensioning shaft cassette, your screen liners will still stay clean!

Advantages of mobile screening plants

Maximum flexibility
Quick & easy transportation to your locations
simple & handy operation
Low service & maintenance costs
No transportation costs for transporting the screened material
Saves time by screening directly on site
Suitable for short & long-term use

Discuss with our screening equipment experts

Request a screening system now

Would you like to learn more about how to optimally sort your recyclable materials using a screening system? Or do you already have a specific project in mind? Then let’s talk about your material and how it’s screened. I’d also be happy to show you some references and case studies.

Screening systems in combination with other units

Process recyclable materials in the best possible way

When recycling with screening systems, it is essential that they deliver optimal screening results for the subsequent processing steps. With their technical specifications, our screening systems are optimally prepared for this. Screening system, screen box, conveyor belts and optional equipment guarantee excellent interaction for your mobile processing system.

What can you screen with screening systems?

All-rounder for your material

As specialists for screening systems, we equip your screening system optimally for your application. This means that both the screen linings in the upper deck and the lower deck can be easily replaced and the material adapted. Choosing the right screen surface is crucial for the screening result. Relevant factors to consider when making a selection include, for example, the type of material, the moisture content, and, of course, the desired screen sizes. We would be happy to advise you on this.

Top Performers and Workhorses

Extremely powerful on the road

Uncompromisingly trimmed for performance:

Mobile screening machines featuring SPALECK technology are among the most efficient in the world and guarantee excellent screening results. Performance by SPALECK.

Product Details: Mobile Screening Plants

Technical Details at a Glance

Use case

Classification of difficult-to-screen, sticky and moist materials
Materials for separating cuts from approx. 0.2 to 120 mm

Screening material

How It Works

At the heart of the mobile system is the SPALECK 3D combi tensioning shaft screen. This combined model guarantees that the screen material on the upper deck is optimally loosened and turned. On Screening machines with flip-flow screen deck can also be large-grained material can be screened. The above the flip-flow screen deck attached and forming a cascade with this Screen deck with 3D screen segments protects through Reduce the load on the flip-flow screen mats. This increases their service life and guarantees optimum screening results. The 3D screen segments with maximum open screen area can quick and easy thanks to the modular design be retrofitted. The sieve mats of the flip-flow sieve are without screws and have no edges, that could cause problems. Through this the screen mats can be quickly converted, which enables an optimal product flow.

Advantages

Virtually blockage-free screening in the upper and lower deck thanks to tried and tested 3D and expansion shaft technology.
The 3D screen segments guarantee a particle size free of long parts and impurities for the flip-flow screen located in the lower deck, i.e. precise screening.
The tensioned-shaft screen with screwless screen mats eliminates unnecessary cleaning and reduces maintenance time.
The screen box can be raised hydraulically by 500 mm to make it easier to change the screen.

Our Spaleck Best Sellers for Recycling

The optimal technology for every type of recyclable material

SPALECK TestCenter for Your Recycled Materials

We invite you to test your recyclable materials at the SPALECK TestCenter. It’s free, of course, and it delivers the best recycling results.

The Best Screening Quality Right Where It's Needed

Mobile screening systems for your material

Our SPALECK 3D-COMBI screening technology is at the heart of some of the world’s best screening plants.

Our partners TEREX FINLAY and POWERSCREEN, leading international suppliers of mobile processing technology, rely on SPALECK tension shaft technology for screening.
