Electrocoagulation for Efficient Water Treatment
RedBox is redefining the treatment of industrial process water. By eliminating the need for traditional chemical flocculants, this compact system offers a cost-effective and environmentally friendly solution for reliably removing even hard-to-degrade pollutants from your wastewater.
The RedBox is more than just a wastewater treatment system—it’s a source of return on investment. By using state-of-the-art electrocoagulation, you can optimize your processes where it counts most: in terms of costs, safety, and environmental impact.
Minimize your OPEX by eliminating the need for expensive chemicals and reduce your disposal costs by significantly reducing sludge volumes.
Highly efficiently reduce emulsified oils, heavy metals, and COD loads—to ensure legally compliant and long-term adherence to all discharge limits.
Take advantage of fully automated processes and quick component changes for maximum system uptime without the need for additional staff.
Improve your environmental performance and workplace safety through eco-friendly wastewater treatment that reduces the use of hazardous substances.
The Morselt RedBox uses innovative electrocoagulation to remove pollutants from your wastewater highly efficiently and without aggressive chemicals. Thanks to its compact design, it can be seamlessly integrated into existing processes, thereby reducing your operating costs in the long term.
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More InformationAs a modular component, the system can be perfectly combined with other processes such as filtration or flotation. This results in a customized process chain that reliably eliminates even the most complex contaminants:
Industrial wastewater comes in many forms—from metal residues to stubborn emulsions. We don’t supply off-the-shelf products; instead, we provide a system solution that’s exactly right for you. The RedBox treats even difficult wastewater so efficiently that downstream processes operate optimally.

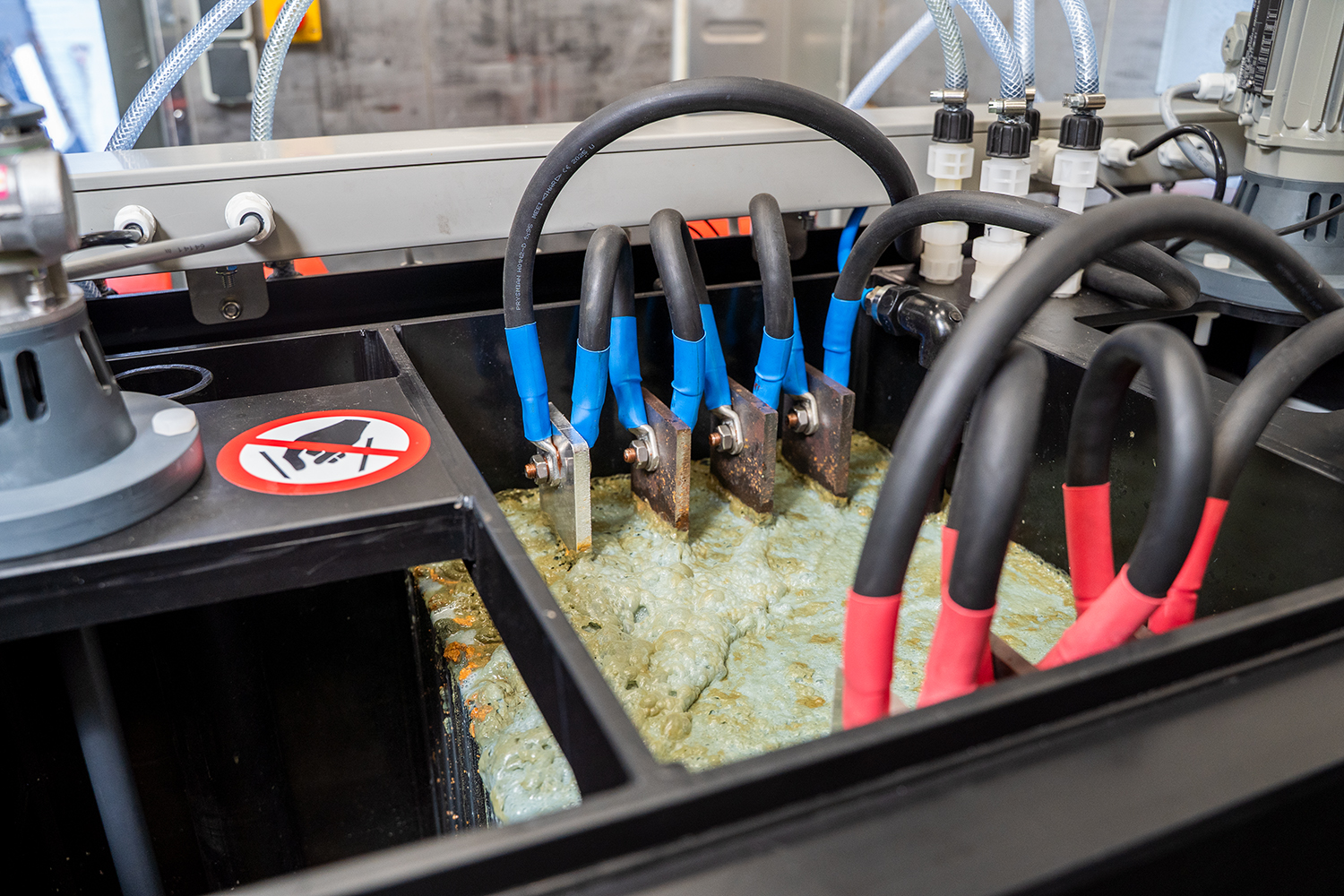

Electrocoagulation uses a targeted electric current to make dissolved pollutants in wastewater visible. The system generates special flocs (known as hydroxides) directly in the water, which act like a magnet: they firmly trap dissolved heavy metals such as nickel, copper, or chromium within their structure. These loaded flakes can then be reliably separated using a chamber filter press or by settling. The result: reliable cleaning and guaranteed compliance with your limits—without the heavy use of traditional chemicals.
We’re putting an end to unwanted phosphates and contaminants. The Morselt RedBox uses a highly efficient electrochemical process: It generates special flocs (known as iron hydroxides) directly in the wastewater, which detach from the anodes. These flakes act like a net, firmly trapping dissolved phosphates and impurities within their structure. Once prepared in this way, the solids can be reliably separated during a subsequent filtration process. The result: reliable water treatment that meets even the strictest environmental standards.
Complex active ingredients are often difficult to filter. We break down these chemical chains electrochemically. This reduces the load on subsequent stages, such as activated carbon filtration, and makes the purification process significantly more efficient.
Whether it’s discoloration or organic suspended solids, electrocoagulation visibly clarifies the wastewater. When combined with an adsorption stage, such as an activated carbon filter system, this lays the foundation for preparing your water for discharge.
No more expensive divisive tactics. Our solution separates oil-water mixtures using only electricity. The gas bubbles produced in this process carry the fats to the surface, where they can be easily removed in a subsequent cleaning step.
PFAS pose a challenge for any filter. The RedBox filters out the bulk of these contaminants right from the start. This protects your valuable filtration systems, extends their service life, and significantly reduces your operating costs.
Before your wastewater reaches the sewer system, the Morselt RedBox reduces the organic load by about 20–30%. This protects your equipment from overload and saves you money on discharge fees.
Spaleck Wassertechnik GmbH
6 Robert-Bosch Street
46397 Bocholt
Phone: +49 2871 2134 – 0
E-mail: info@spaleck.de
Wastewater is as diverse as the industries from which it originates. That is why the RedBox is not a rigid product, but rather an adaptable building block for customized comprehensive solutions. We combine our expertise in electrochemistry with industry-specific know-how to implement the most cost-effective and safest wastewater treatment solution for every challenge.

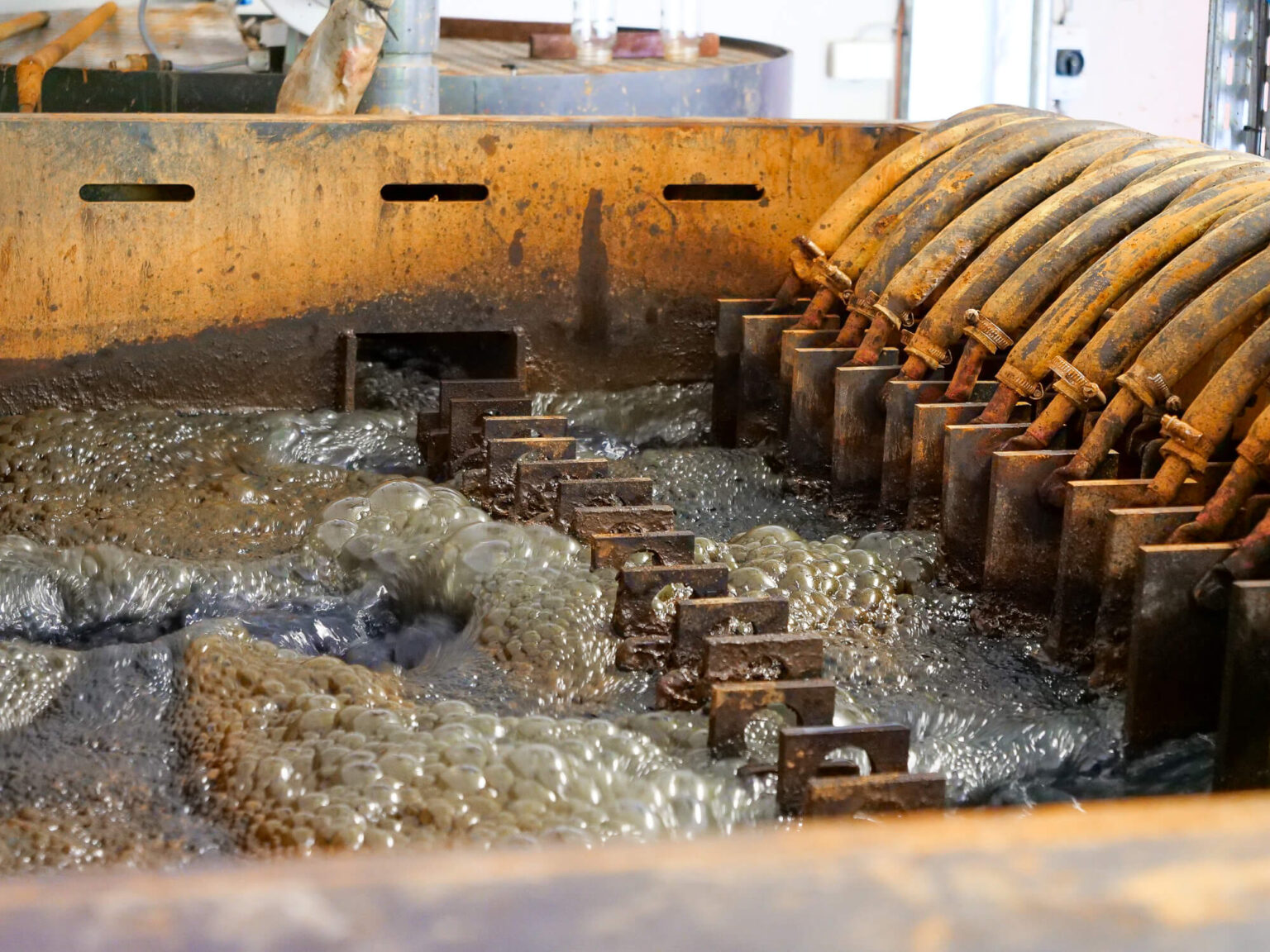

Metalworking often produces complex wastewater containing heavy metals and stable emulsions. The RedBox breaks these bonds without using expensive release agents. In combination with our filtration technology, we thus lay the foundation for safe indirect discharge or efficient recirculation back into the production process.
Wastewater from food production poses a real challenge due to its extremely high COD levels, fats, and stable emulsions. Although biological treatment is the most cost-effective method for breaking down the main load, too much grease and undissolved solids can quickly cause the biological process to break down. The Morselt RedBox offers the ideal solution here as a highly efficient pretreatment unit: It breaks down stubborn emulsions electrochemically and reliably removes fats and organic solids. This ensures that dangerous load spikes are reliably smoothed out. This significantly reduces the load on your downstream biological treatment system, protects it from clogging, and ensures it operates at its optimal efficiency at all times.
Wastewater from the chemical industry often contains compounds that are difficult to break down and that would pass through conventional filters. The RedBox destroys these molecular structures electrochemically. In combination with downstream filtration technology, we achieve a level of purity that meets even the most stringent limits.
Pigments and binders make the wastewater highly turbid and contaminated. RedBox immediately destabilizes and flocculates these substances. In combination with filtration, we treat the water to such a high degree of clarity that it can often be reused for cleaning processes within production.
Paper production requires enormous amounts of water. To conserve this valuable resource efficiently, our system solution—featuring the RedBox—taps directly into the key sub-streams of the process. It removes the finest suspended solids, colloidal impurities, and sticky substances in situations where conventional screens are overwhelmed. Through this targeted treatment of process water streams, we enable extremely high recirculation rates and reliably protect your paper machines from deposits, slime formation, and wear.
Was your industry not listed? No problem. The versatility of our wastewater treatment system lies in its modular design. We analyze your specific wastewater and tailor the RedBox and all other components precisely to your specific conditions—for a solution that is as unique as your production process.
If you have any questions about SPALECK water technology, our experts will be happy to assist you.
Here are some questions about the Morselt RedBox electrocoagulation system. If you have any further questions, please feel free to contact us.
Morselt Wassertechnik is a proud member of the SPALECK Group. This affiliation creates an unbeatable package for you as a customer: While Morselt, as a specialist in electrochemical processes such as electrocoagulation, contributes the technological expertise, the SPALECK Group provides the foundation of a globally active mechanical engineering company.
Yes, absolutely. Thanks to its compact and modular design, it is ideal for retrofitting. It often acts as a powerful preliminary stage to relieve existing filter systems or biological stages and extend their service life.
As the RedBox does not require any liquid polymers or flocculants, there are no high costs for purchasing and storing chemicals. Electrocoagulation also reduces the volume of sludge by up to 50 %, as no additional solids are added to the water using chemicals. This massively reduces disposal fees.
