Uncompromisingly designed for performance: Mobile screening machines and plants featuring SPALECK technology are among the most efficient in the world and guarantee outstanding results.
We design our mobile screening plants to help you recycle efficiently and make money. Our waste recycling screens also offer you the largest possible screening areas. This allows you to achieve the highest screening capacity with maximum screening quality.
SPALECK’s mobile screening plants ensure screening sizes free of long pieces and contaminants, thereby guaranteeing a precise screening process—even with challenging materials such as moist Compost, fine particles, or mixed waste.
Is your material particularly sticky and prone to forming clumps? No problem! With our patented Flip-Flow screening mats, blockages in screens are a thing of the past.
A mobile screening plant from SPALECK guarantees the most precise screening sizes, maximum performance, and optimal results when processing and screening virtually all types of materials.
Are you currently planning to invest in a new screening machine, a recycling system, or an MRF? If so, we should talk. We’d be happy to tell you about all the benefits of your new SPALECK solutions.

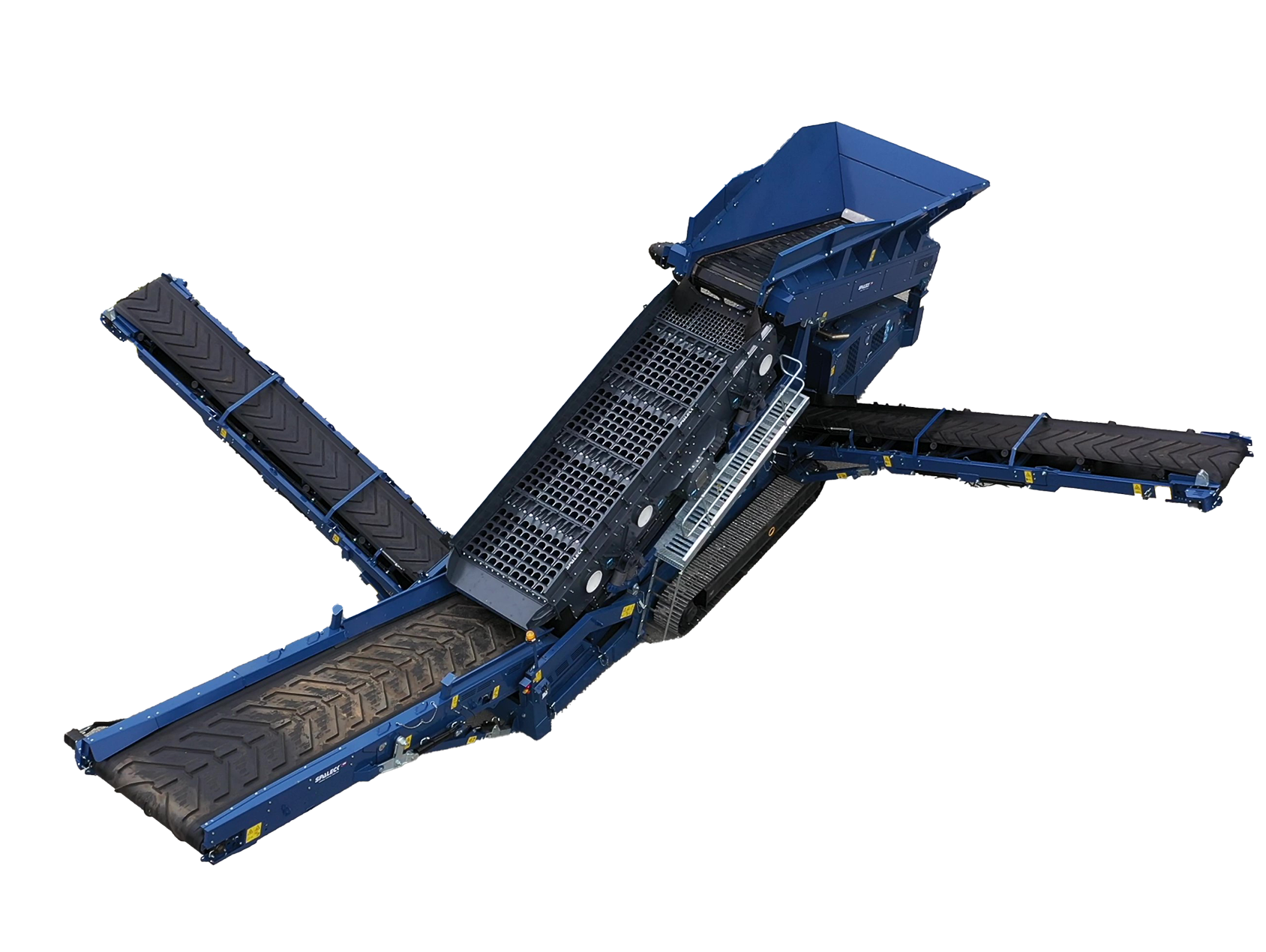

Our All-Arounder
Screening Box
16' x 5'
Top Deck
4.5 levels
Bottom deck
14 mats
Shipping Dimensions
49'3''
x 9'10''
x 11'3''
Operating Dimensions
50'3''
x 44'10''
x 15'9''
Drive
Cummins
Mobility
Track
Our Compact High-Performer
Screening Box
16' x 5'
Top Deck
4 levels
Bottom deck
14 mats
Shipping Dimensions
48'3''
x 9'10''
x 11'2''
Operating Dimensions
48'11''
x 52'4''
x 14'5''
Drive
Deutz
Mobility
Track

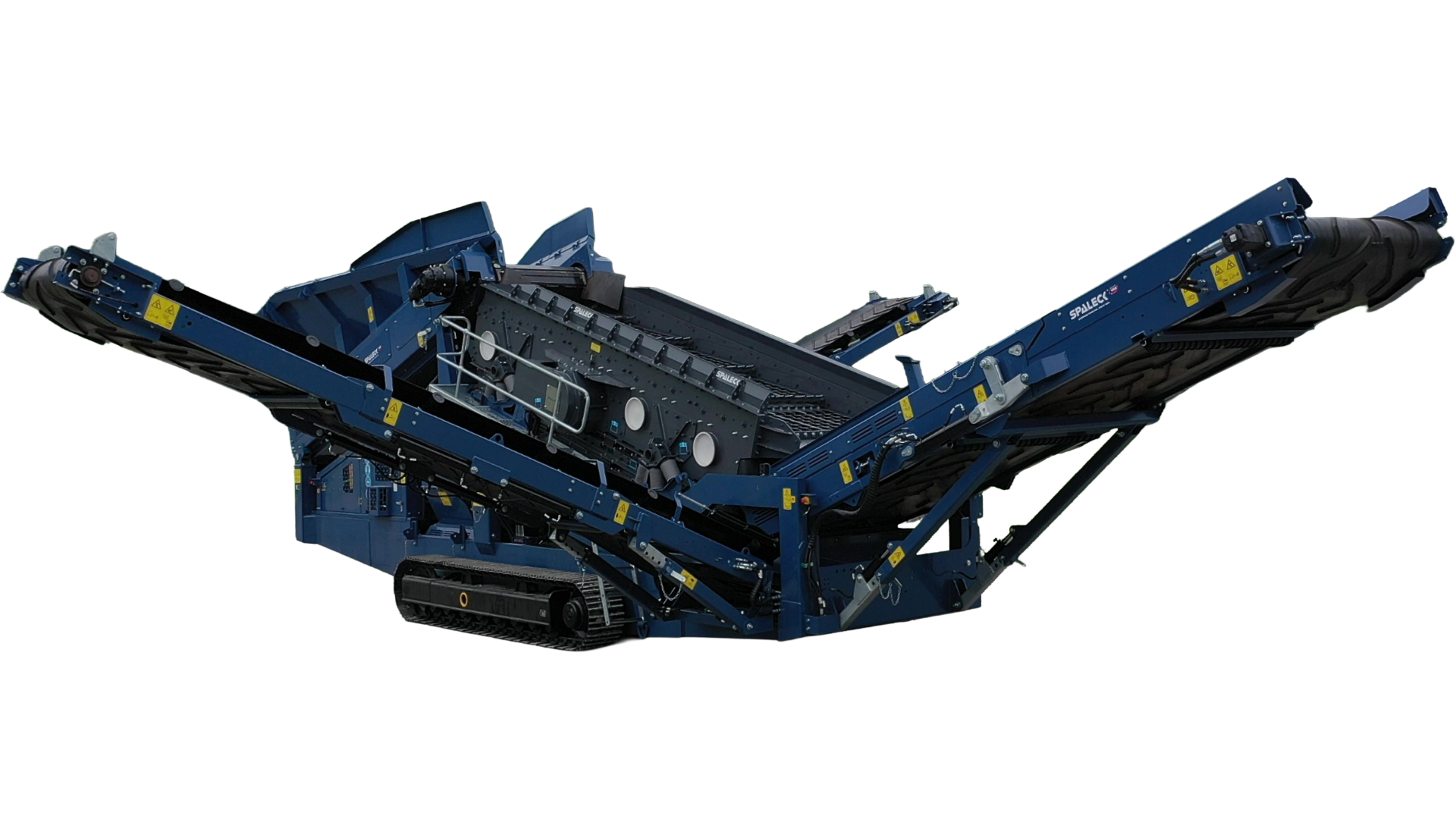

Our Most Powerful
Screening Box
20' x 5'
Top Deck
6 levels
Bottom deck
16 mats
Shipping Dimensions
55'5''
x 9'10''
x 11'7''
Operating Dimensions
55'6''
x 61'4''
x 17'6''
Drive
Cummins
Mobility
Track
Our All-Arounder
Screening Box
16' x 5'
Top Deck
4.5 levels
Bottom deck
14 mats
Shipping Dimensions
49'3''
x 9'10''
x 11'3''
Operating Dimensions
50'3''
x 44'10''
x 15'9''
Drive
Cummins
Mobility
Track
Our Compact High-Performer
Screening Box
16' x 5'
Top Deck
4 levels
Bottom deck
14 mats
Shipping Dimensions
48'3''
x 9'10''
x 11'2''
Operating Dimensions
48'11''
x 52'4''
x 14'5''
Drive
Deutz
Mobility
Track
Our Compact High-Performer
Screening Box
20' x 5'
Top Deck
6 levels
Bottom deck
16 mats
Shipping Dimensions
55'5''
x 9'10''
x 11'7''
Operating Dimensions
55'6''
x 61'4''
x 17'6''
Drive
Cummins
Mobility
Track
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More Information
At the heart of the mobile plant is the SPALECK 3D COMBI Flip-Flow screening machine. This combined model ensures that the material on the upper deck is optimally loosened and turned. Flip-Flow screening machines equipped with a tensioned-shaft screen deck can also screen coarse-grained material.
The screen deck with 3D screen segments, mounted above the tension shaft screen deck and forming a cascade with it, protects the tension shaft screen mats by reducing the load on them. This extends their service life and ensures optimal screening results.
Thanks to their modular design, the 3D screen segments with maximum screening area can be quickly and easily reconfigured.
The screening mats on the Flip-Flow screening machine are secured without screws and have no edges that could cause problems. This allows the screening mats to be changed quickly, ensuring an optimal product flow.
Optimize your mobile processing: The SPALECK ActiveFEED infeed unit, an intelligent infeed unit, ensures fully automatic, consistent material feeding. By automatically adjusting to fill level and material properties via sensors, you prevent overloads and maximize the sorting efficiency of your mobile screening machine. Higher throughput, less wear, and maximum recovery rates.
The exclusive combination of the SPALECK Mobile 3D COMBI and eddy current sorters is the ideal solution for sorting your ASR. In the first step, the 3D COMBI sorts your material by size. Eddy Current then separates the non-ferrous metals based on their differing electrical conductivity, using the principle of electromagnetic induction. This results in optimal sorting performance.
The ExctractVac series includes several compact and efficient air separators that deliver top performance when combined with a mobile screening machine from SPALECK. The air separators are designed to remove materials such as plastics or light contaminants from Compost, bark, waste, and recycled aggregates, making them ideally suited to your needs.
Our SPALECK mobile screening plants can screen all types of recycled materials, such as incineration slag, light and heavy shredder fractions, scrap metal, Electronic waste, Construction debris, household, industrial, and bulky waste, Compost, plastic fractions, Biomass, etc.
From shredded scrap to ASR and Slag, precise separation is the key to metal recovery. Our mobile screening plants ensure a clean material flow and can be perfectly combined with eddy current separators for the recovery of non-ferrous metals. Fewer impurities, higher recovery rates, and optimized further processing mean more value from every metric ton.
Efficient screening of wood chips, mulch, Compost, green waste, and topsoil—all in one machine. SPALECK’s screening plants deliver consistent output quality even with moist or fibrous materials. This allows you to reduce oversized particles, minimize downtime, and produce biomass fuels or Compost that meet the requirements of your end market.
The mobile screening plant for waste and construction and demolition (C&D) waste ensures efficient recycling in the areas of construction and demolition (C&D) waste, municipal solid waste (MSW), and commercial and industrial (C&I) waste. Our mobile screening plant separates C&D materials such as concrete, brick, wood, and insulation into clean fractions, reduces the need for secondary screening, and delivers high-quality feedstock for recycling or the production of refuse-derived fuel (RDF). For municipal solid waste, it precisely separates household waste, organic waste, plastics, and fine particles, resulting in cleaner fractions, better sorting results, and higher energy recovery. In C&I recycling, it processes packaging, films, plastics, and residues with consistent performance, less manual sorting, and improved material quality.
We design and build every single SPALECK mobile screening machine to be 100% tailored to the customer’s specific application. This way, you can be sure that our screen will optimally classify and screen your material.
Try out our mobile screening plants during an on-site demonstration using your own material right at your facility.
Choose between flat or curved screening mat edges to improve your screen's performance. Flat edges maximize the open area for high throughput, while curved profiles ensure optimal Material flow and fine separation.
With SPALECK CONNECT, you can monitor your machine's performance in real time—whether from the control room or via your smartphone. Prevent downtime and optimize productivity with intelligent data analytics.
With SPALECK's LubricationCONTROL, you can ensure that your bearings are always optimally lubricated and protected from contamination. Reduce wear, extend the service life of your machines, and avoid errors associated with manual lubrication.
Our air-based SmartSUSPENSION system provides vibration damping of up to 99%. With soft start/stop and excellent load balancing, it is the most efficient solution for protecting your plant infrastructure.
The integrated, thermostatically controlled hydraulic oil cooler protects your system from overheating. Reliable performance, even during intensive, continuous screening operations.
The unique SPALECK MultiZONE screen deck offers you multiple screening zones on a single deck. This allows you to easily control the screening quality and flexibly adapt your screen to changing material properties.
Yes, with SPALECK CONNECT you receive machine data in real time on your smartphone or desktop. Monitor performance, detect problems early and ensure high operational availability – from anywhere.

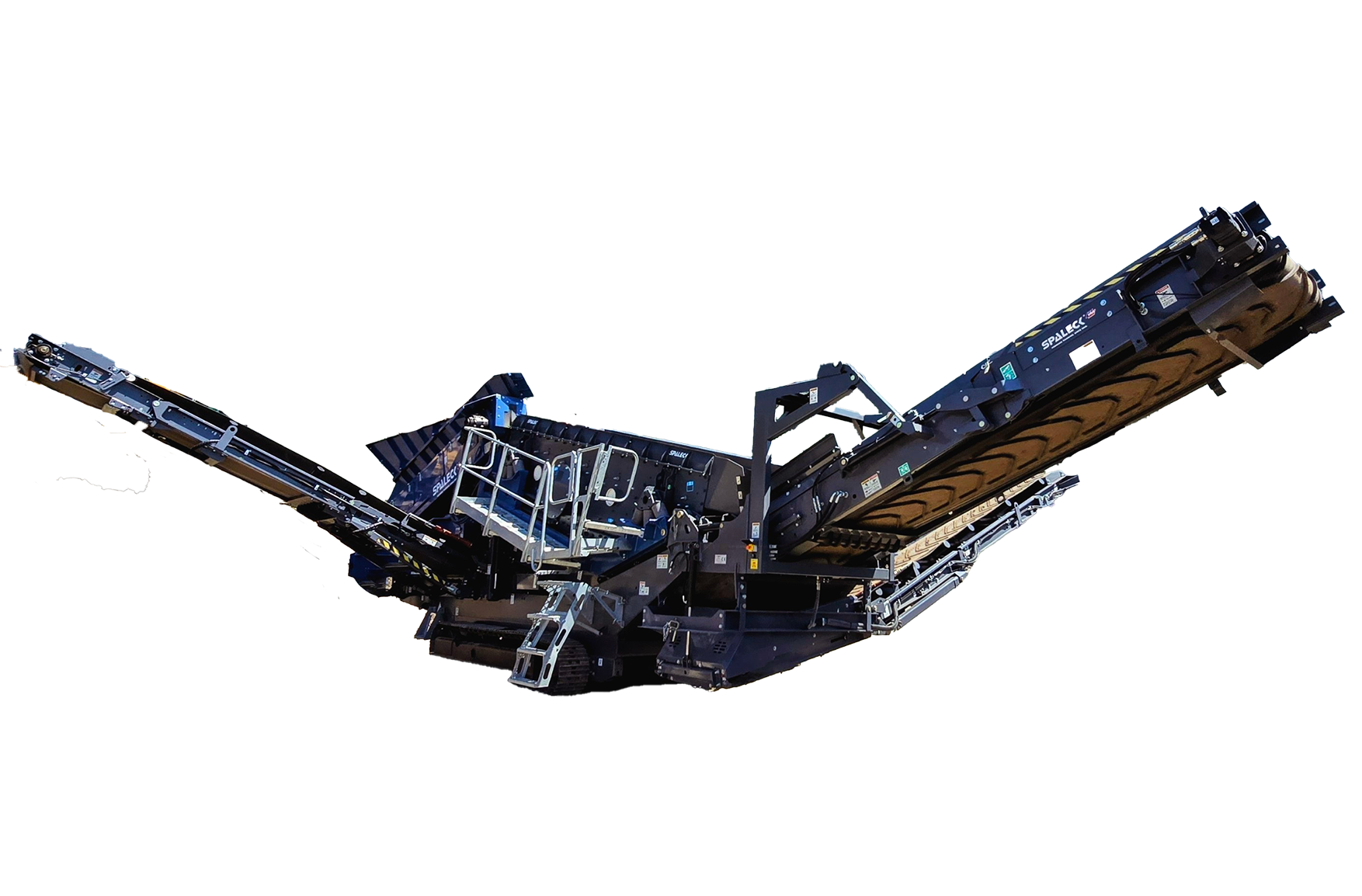

The 165T, 205T and the 550 from SPALECK are among the best mobile screening machines. They have been specially developed for on-site sorting of all recycling materials such as scrap metal, Construction debris, organic waste or ASR – with high throughput and precise separation. They are a great choice for recyclers who need mobility without having to compromise on performance.
Yes, SPALECK USA offers rental options nationwide. Contact us to check availability in your area and schedule a live demonstration.
SPALECK screening machines are equipped with innovative 3D COMBI screening technology and offer unsurpassed efficiency for wet, sticky and difficult-to-process materials. Durability and reliability make them a proven choice worldwide.
Yes, the SPALECK screening machines are based on a mobile chassis and are designed for rapid relocation and commissioning. It is fully operational within a few minutes and offers maximum flexibility at changing locations.
By delivering clean and precise material fractions, SPALECK’s mobile screening plants ensure optimized further processing, higher material purity and increased profitability in recycling plants.
SPALECK’s mobile screening plants process a wide range of materials, including construction and demolition (C&D) waste, Compost, soil, wood waste, scrap metal, metals, plastics and municipal waste.
A mobile screening machine from SPALECK is used to sort and separate different materials in recycling plants or construction sites according to Particle size. It delivers precise screening results, even with the most difficult waste streams.
