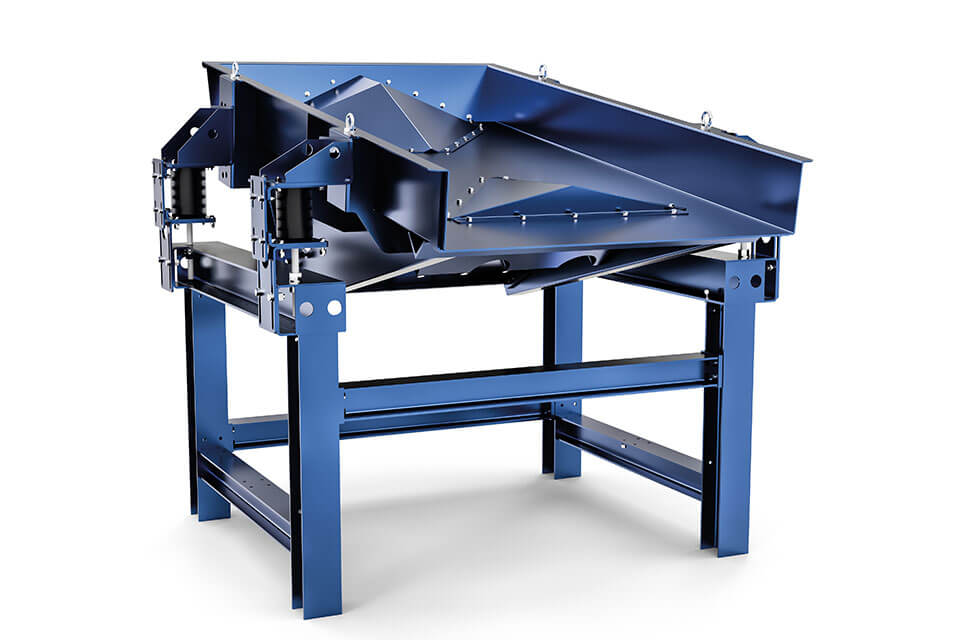

Vibratory feeders and pipes are conveying devices that transport the material to be conveyed by means of directed vibrations.

The exact design and condition of the vibratory feeders and pipesare tailored to the respective application and are designed according to customer specifications. Classical applications are

• Uniformity / distribution of the product
• Conveying

• Dosage
• Bunker discharge

YouTube

Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren

Video laden

For conveying sections and hopper discharge in case of medium to high throughputs.

Compact construction designed for continuous operation. Optimal vibration insulation using highly elastic spring elements. The inclination can be adjusted from 0° to approx. 8°.

Low cleaning and maintenance times thanks to one-piece trough design.

Latest drive technology using quiet and low-maintenance unbalance motors with infinitely centrifugal force calibration. Also suitable for operation with a frequency converter.

Alternatively with special lining for conveyed material that is abrasive, cutting or prone to getting stuck.

Basic structure made of normal or stainless steel. Also available as a closed or pressure tight system with multi shared cover.

Upload Image...

For conveying sections and dosing tasks in case of medium to high throughputs.

Compact construction designed for continuous operation. Optimal vibration insulation using highly elastic spring elements. The inclination can be adjusted from 0° to approx. 8°.

Low cleaning and maintenance times thanks to one-piece trough design and multi shared, easily changeable wear-lining.

Latest drive technology using quiet and low-maintenance magnetic drives, gradeless adjustable by related thyristor controller as built-in or housing execution

Alternatively with special lining for conveyed material that is abrasive, cutting or prone to getting stuck.
Basic structure made of normal or stainless steel. Also available as a closed or pressure tight system with multi shared cover.

Upload Image...

The SPALECK resonance conveyors have unbalance motors or exciters.

Resonance conveyors are dual-mass vibration systems that use a small transmitted vibration to achieve a large oscillation of the conveyor trough (the resonator). Linked, dynamic thrust springs are used to create direct vibrations. Variable conveyor outputs can be adjusted for the relevant applications using a frequency convertor.

The vibrations produced in the base frame are increased considerably in the conveyor trough by dynamic thrust springs,, and the „micro-throw principle“ is used for improved transportion that protects the product.

The resonance conveyor can be designed closed or open,surface treated or equipped with additional components.

The operation frequency is near to the resonant frequency. This results in significantly less energy consumption compared to traditional vibratory conveyors.

Upload Image...

For conveying sections and dosing tasks in case of low to medium throughputs.

Compact construction designed for continuous operation. Optimal vibration insulation using highly elastic spring elements. The inclination can be adjusted from 0° to approx. 8°.

Low cleaning and maintenance times thanks to dead spots avoidance and tool free fixed, splinter-free transparent cover.

Latest drive technology using quiet and low-maintenance dosing drives, gradeless adjustable by related thyristor controller as built-in or housing execution.

Conveyor trough made of normal or stainless steel. Surfaces in coated, blasted, pickled or buffed execution.

Upload Image...
