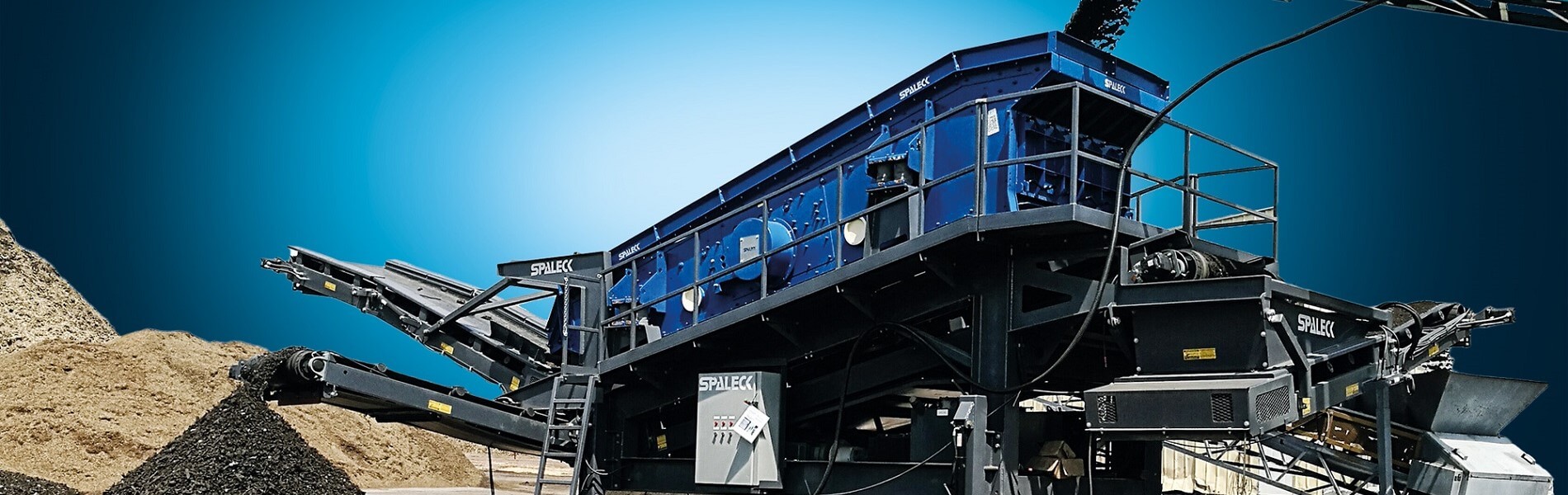

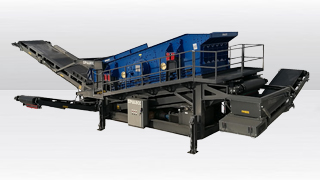

SPALECK electric screening plant semi-mobile

Electric mobile screener designed for efficient screening

Extremely powerful screener on site

Our SPALECK 206 Electric Mobile Screener persuades with full 20ft open area, high-performance liners
for oversize, middle grade and fine fractions.
Easy access with catwalks and Man-Hole Entry. Get the power for your material screening.

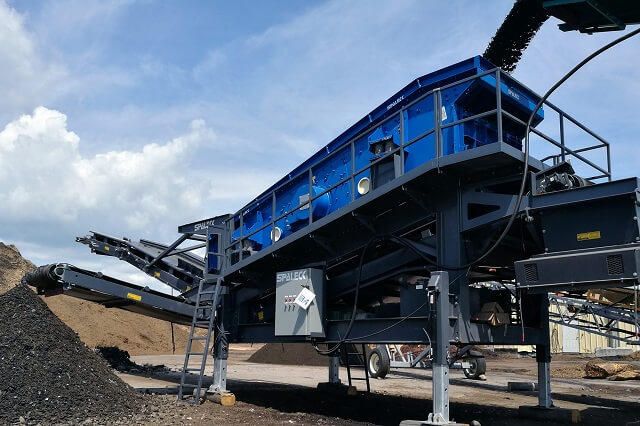

Video of a SPALECK 206 Semi-Mobile screener

Unrivalled SPALECK screening technology meets practical mobility

We design our screening machines so that you need less effort but gain maximum performance and cleanest screening fractions. Here you can see an application video of wood processing by an electric screener.

YouTube

Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren

Video laden

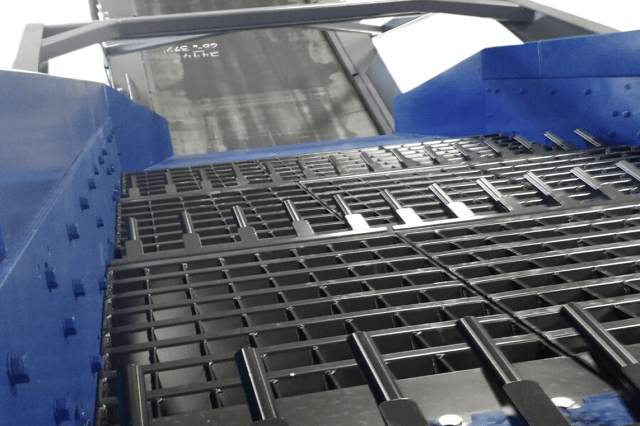

electric screening plant for sale

Classifying with mobile electric screeners – Quality
at its highest level

Profit from optimal screening results!

Our high-Performance 3D upper- and Flip-Flow lower-deck guarantee excellent screening-quality, even with very difficult screening-materiales.

Easy to transport

with hydraulic jacking legs

Benefit from the best screening performance at any location. Hydraulic jacking legs assist the trailer loading, so that you no longer need a crane for shifting the electric mobile screening plant.

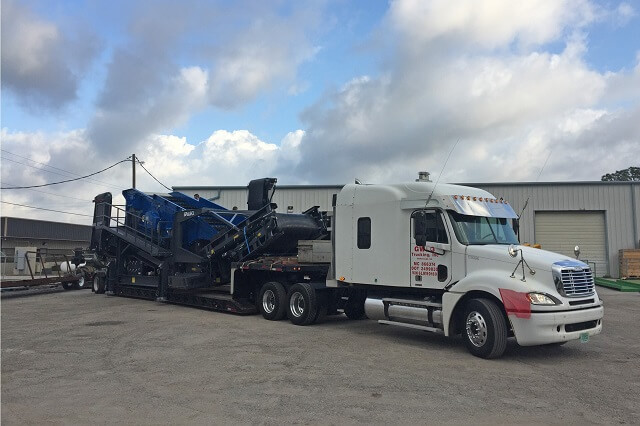

electric screening plants transport

APPLICATION

This electric screening plant can classify and screen all types of difficult, sticky or wet materials

MATERIAL

Any type of recycling materials such as, for example
incineration slag, SLF and SHF, metal-scrap, e-scrap, C&D-, C&I- and bulky waste, compost, plastic-fractions, biomass, topsoil, etc.

MODE OF OPERATION

The heart of the mobile electric screening plant is the SPALECK 3D Combi Flip-Flow screen deck. This combined model guarantees that the screening material on the top screening deck is loosened and turned optimally. On screening machines with Flip-Flow screen deck, a coarse grain material can also be screened.

The screen deck mounted above the Flip-Flow screen deck which forms a cascade together with 3D screen segments protects by reducing the loads of the Flip-Flow screen mats. This increases their service life and guarantees optimum screening results. The 3D screening segments with maximum open screening surface are quick and easy to convert thanks to the modular design.

The screen mats of the Flip-Flow screens are secured without using screws and do not have any edges that may cause problems. As a result, the screen mats can be converted quickly which allows an optimum product flow.

BENEFITS

  • Electric Screening plant SPALECK 206 Skid Mobile, 2 deck screening unit,
    3D top deck screening & SPALECK bottom deck Flip
    Flow
  • Easy transport with hydraulic jacking legs to assist
    trailer loading. NO crane required for lifting
  • 3 on-board conveyors; hydraulic folding
  • Working platforms for easy maintenance on all sides
  • Standard with electric drive complete with control
    panel (diesel hydraulic drive also available)
  • Unrivalled SPALECK screening technology with top
    deck 3D panels and bottom deck SPALECK Flip Flow
    technology
  • Full 20 x 6 ft screening area with additional 2 ft impact
    plate for optimal screening results
  • Range of SPALECK screen media available for all
    applications

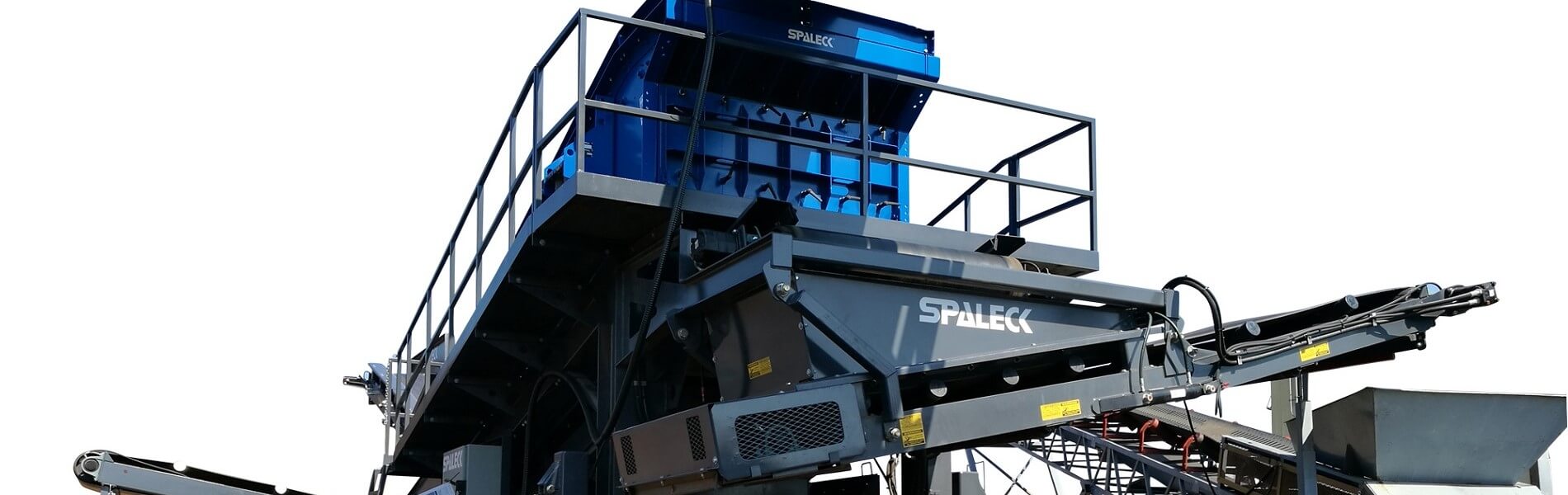

mobile screening plant with electric power
